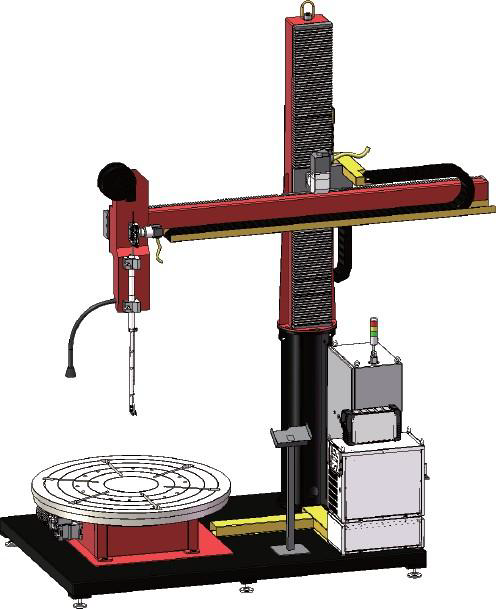

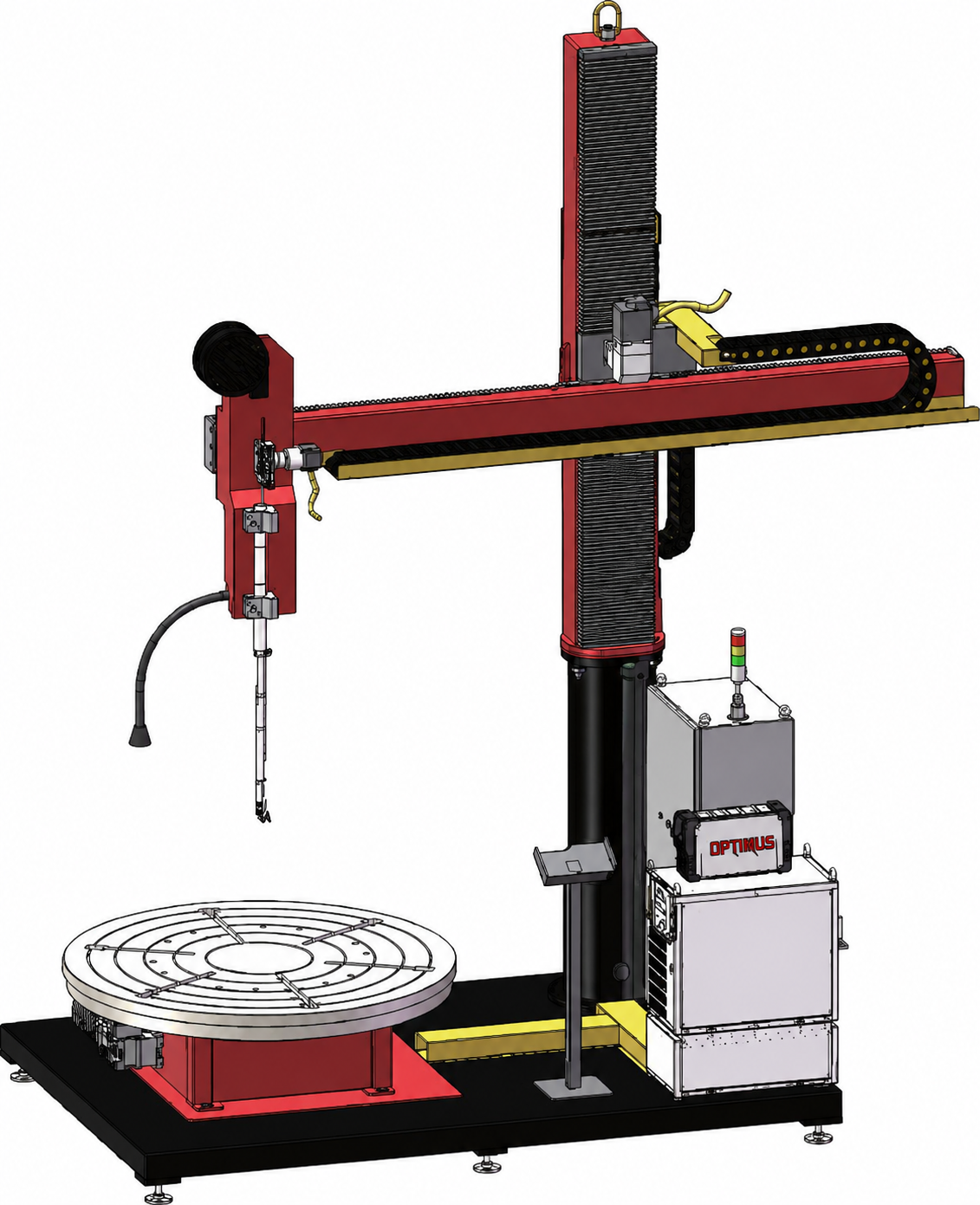

The AMC Vertical surfacing workstation is specifically designed for cost-effective component surfacing. Built on a powerful design concept, it incorporates a standard ESY control system, precision rack and pinion linear guides driven by servo motors for high-precision motion control.
Model Variants
We can customise all Specification as client needs
Application Areas & Functions :
Used in petroleum, chemical, nuclear power, and heavy engineering fields for valve body and pipe workpiece welding manufacturing. Suitable for surfacing valve inner walls, flange end faces, reducing pipes, sealing grooves, and more.
High-Precision Motion & ESY Control :
Integrates a standard ESY control system with precision rack and pinion linear guide driven by a high-torque servo motor to ensure smooth, accurate, and repeatable positioning during continuous surfacing operations.
Automatic Arc Voltage Tracking :
Delivers exceptional arc voltage automatic tracking accuracy within ±0.3V, ensuring uniform single-layer surfacing thickness from 1.5mm to 3.5mm without manual adjustment.
Detailed performance metrics, capacity dimensions, and drive parameters across models.
Customizable Specs
We can customise all Specification as client needsWelding Automation
Heavy-Duty Industrial DutyPrecision Controls
Ergonomic InterfaceSub-Micron Accuracy
100% Factory Calibrated| Parameter Description | Unit |
Model Variant
AMC-1000
|
Model Variant
AMC-1500
|
|---|---|---|---|
| Surfacing inner diameter range | mm | Φ38-Φ1000 | Φ38-Φ1500 |
| Surfacing length | mm | ≤1000 | ≤1000 |
| Arc voltage automatic tracking accuracy | V | ±0.3 | ±0.3 |
| Single-layer surfacing thickness | mm | 1.5-3.5 | 1.5-3.5 |
| Control system | / | ESY Control | ESY Control |
| Drive system | / | Rack & Pinion Servo | Rack & Pinion Servo |
